Visual fault locator an ideal tool which is specially designed for the on-site construction personnel’s who operate fiber optic fault-locating, connector testing etc.
Send Email Get A QuoteSmall size, easy to carry
Measuring range up to 1-30km
Easily identify the fiber break-point
Achieve end-to-end optical fiber identification
Complete mechanical splice point optimization

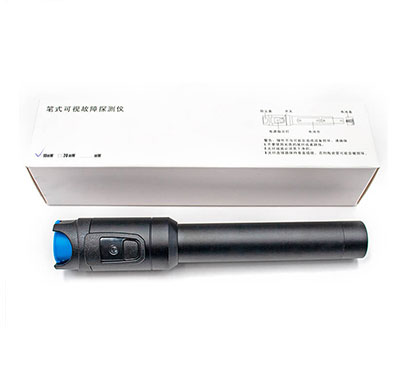

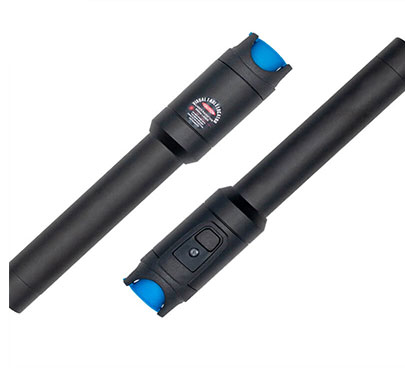

Visual Fault Locator
TL532 series visual fault locator is used for the measurement in single mode or multi-modefibers. It features a rugged design, a universal connector and an accurate measurement.
| TL532-1 | TL532-10 | TL532-20 | TL 532-30 | TL 532-50 | |
| Wavelength | 650nm±20nm | ||||
| Output Power | >1mW | >10mW | >20mW | >30mW | >50mW |
| Dynamic Distance | 2~5km | 8~12km | 12~15km | 18~22km | 22~30km |
| Mode | Continuous Wave (CW) and Pulsed | ||||
| Fiber Type | SM | ||||

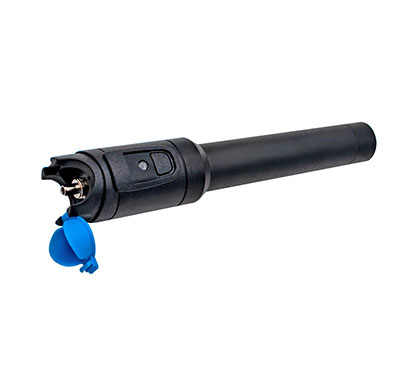

| Connector | 2.5mm | ||||
| Packaging Size | 210*73* 30 | ||||
| Weight | 150g | ||||

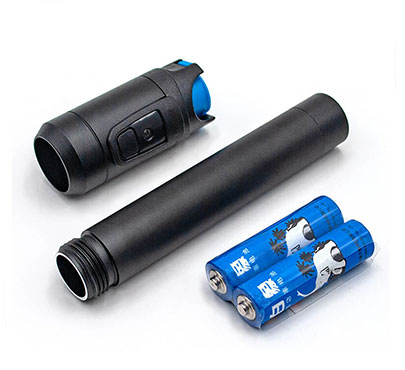

| Power Supply | AA* 2 | ||||
| Operating Temperature | 10--+50℃,<90%RH | ||||
| Storage Temperature | 20--+60℃,<90%RH | ||||
